Product Features
Precise UV Spectrum: Employing an XeCl lamp source, it precisely emits 308nm UVB excimer light, ensuring the purity of treatment. Renowned for its high-precision UV spectrum, the system thoroughly eliminates the interference of UVA and UVC spectra, safeguarding the safety and peace of mind during the treatment process.
Efficient Treatment Experience: Boasting exceptional radiation intensity, the treatment yields immediate results, with each session lasting only seconds to minutes, significantly enhancing treatment efficiency. For patients with generalized skin lesions or multiple foci, precise and targeted treatment can be applied one by one, dramatically shortening the overall treatment cycle and saving valuable time for patients.
Comprehensive Treatment Coverage: Designed with comprehensive considerations, it offers a wide irradiation area, capable of covering a broader range of skin lesion regions. This facilitates large-scale coverage in a single treatment, enhancing treatment convenience.
Precise Targeting, Worry-free Health: Specifically designed for localized skin diseases, it precisely targets the lesions during treatment, effectively avoiding impact on surrounding healthy skin. Users can learn more about skin protection techniques by consulting the manual or professional teams.
Transparent Treatment Process: Equipped with a specially made UV-blocking observation window, crafted from medical-grade materials, it allows users to clearly observe skin lesion conditions during treatment, boosting treatment confidence.
Long-lasting Light Source: Utilizing high-quality XeCl lamps as the light source, it ensures a long lifespan of the light source. Users need not worry about subsequent light source replacement costs, maximizing cost-effectiveness.
User-friendly Interface Design: The interface isconcise and user-friendly, adopting a radiation time input mode that makes it easy for users to set the treatment time. The large LCD display shows the input time and countdown in real-time, providing intuitive and convenient operation.
Parameters | |

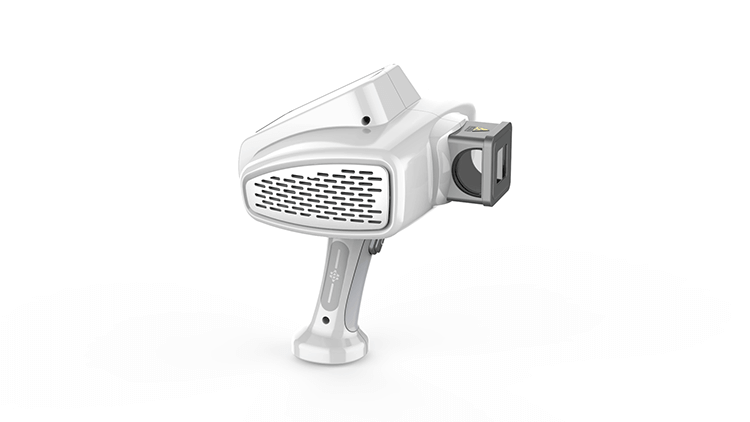

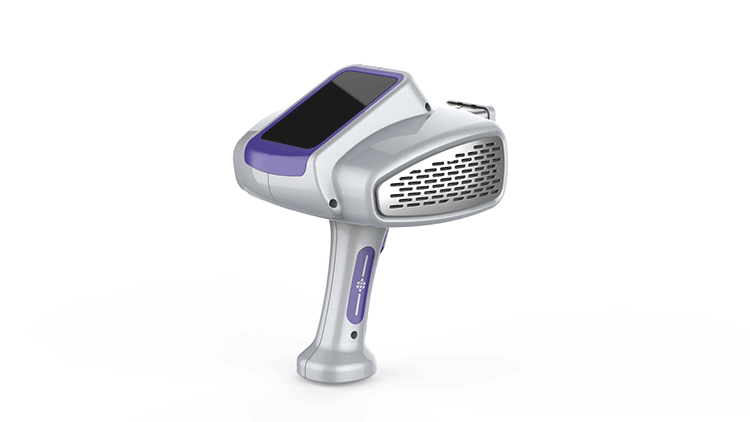

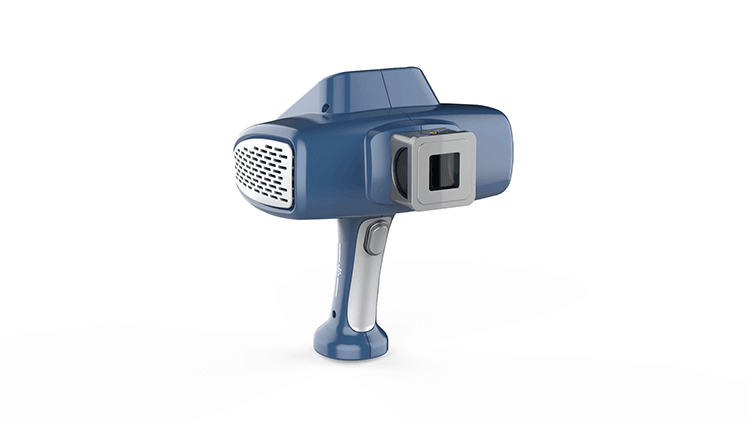

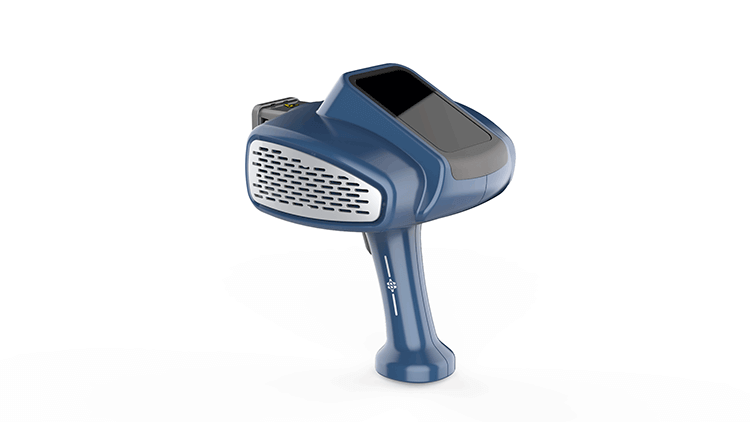

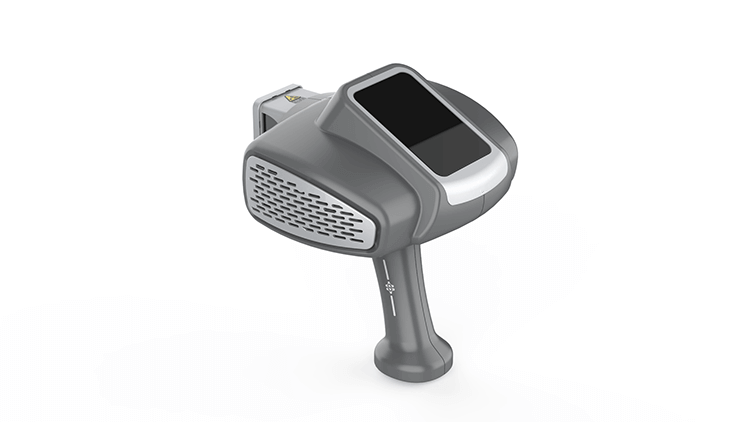

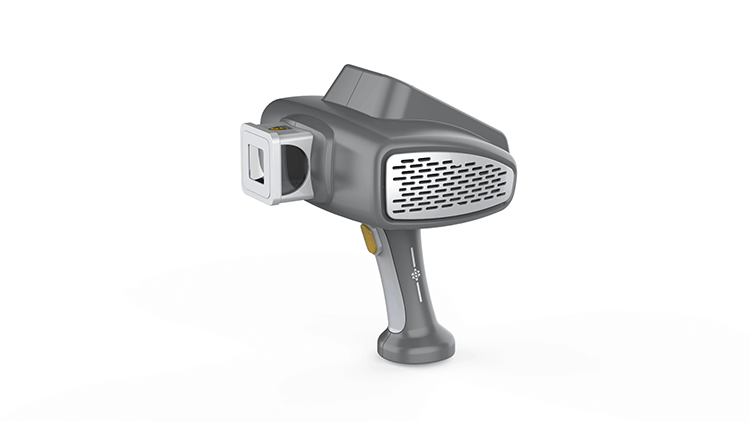

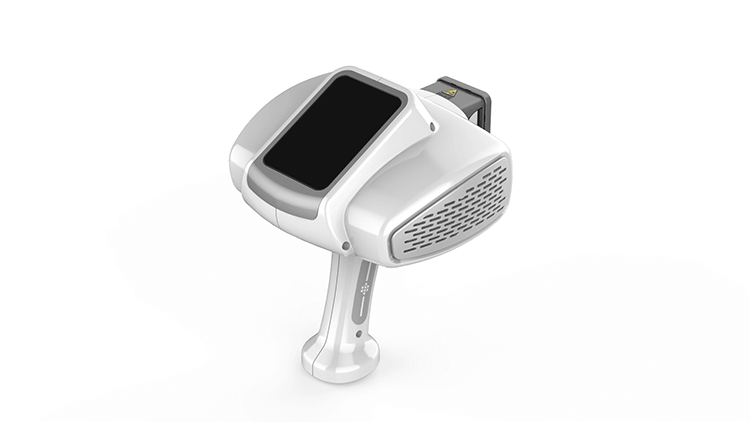

Product Name | Z1220 308nm UV Excimer Light Therapy |
Lamp Type | XeCl Lamp |
Output Power | 35.4mW/cm² |
Adjustable Dose | 35mJ/cm²--4956mJ/cm² |
MED Test | 3s、6s、9s、12s |
Treatment Time | 1s --140s adjustable |
Treatment Area | 16cm²(4cm×4cm) |
Treatment Noise | Less than 65dB(A) |
Peak wavelength | 308nm |
Rated Voltage | 220v |
Rated Frequency | 50 Hz |
Working Temperature | 5℃--40℃ |
Atmospheric Pressure | 700hpa -1060hpa |
In-depth Explanation of the Principle of 308nm Excimer Light
Light Source Generation: The unique excimer is formed under the action of a high-frequency electric field between xenon (Xe) and chlorine (Cl) atoms, serving as the cornerstone of the light source.
Energy Release: After receiving an electron from the xenon atom, the chlorine atom forms an unstable excimer with it. Upon returning to a stable state, this excimer releases high-purity 308nm monochromatic light.
Therapeutic Mechanism: This light wave falls within the highly effective therapeutic range of ultraviolet light, activating the tyrosinase in melanocytes, thereby promoting melanin production and achieving therapeutic effects.
